MIni Trencher
Mini Trencher User Manual

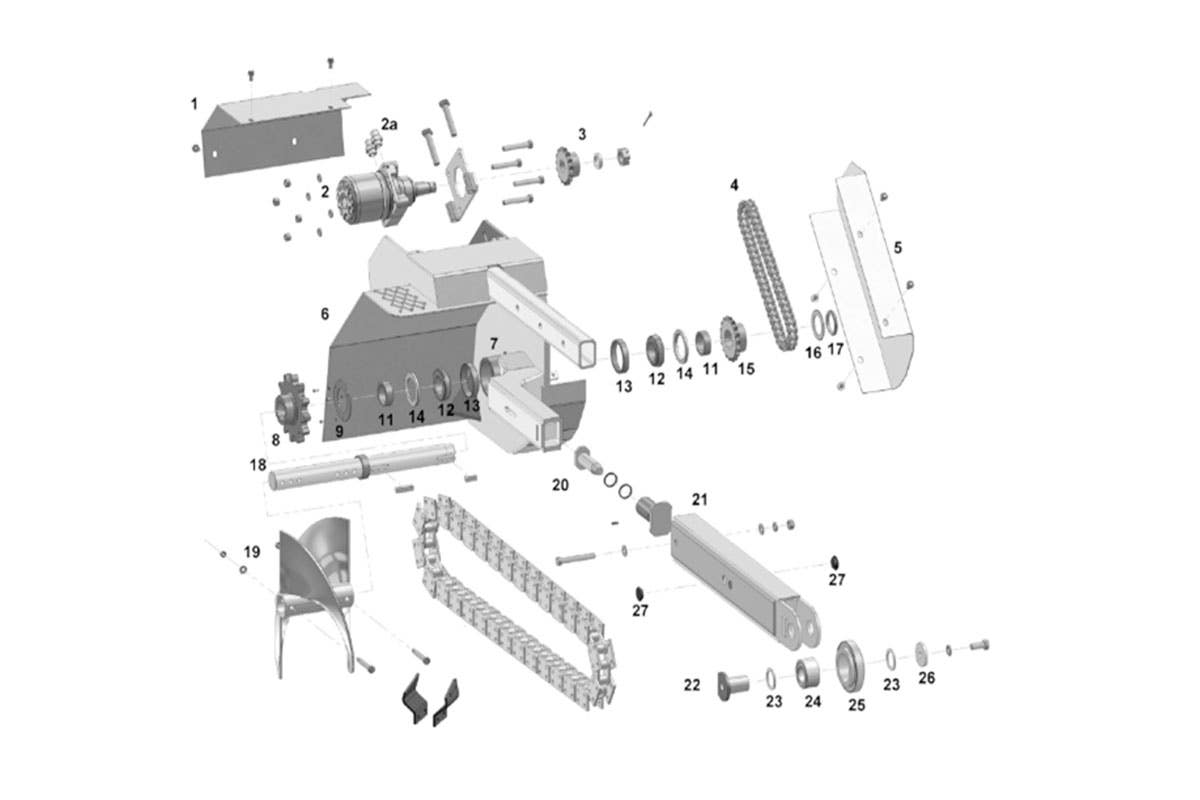

Mini Trencher Replacement & Service Parts
dqwdqwdqwdqw
| Item # | Description | Part Number |
| 1 | Motor Cover | 469142380IG |
| 2 | Hydraulic Motor | 75308860IG |
| 2a | Motor Fitting (2 required) | 469142400IG |
| 3 | Motor Sprocket Drive (includes key) | 469142410IG |
| 4 | Chain (includes master link) Drive | 469142420IG |
| 5 | Chain Cover | 469142430IG |
| 6 | Trencher Housing | 469142440IG |
| 7 | Grease Fitting | 469142450IG |
| 8 | Drive Sprocket (digging chain) | 469142460IG |
| 9 | Seal Protection Plate (Incl cap screw) | 469142470IG |
| 11 | 3/4" Shaft Spacer (2 required) | 75308970IG |
| 12 | Bearing Cone (2 required) | 75308920IG |
| 13 | Bearing Cup (2 required) | 75308930IG |
| 14 | Shaft Seal (2 required) | 75308940IG |
| 15 | Driven Sprocket | 469142560IG |
| 16 | Lockwasher | 75309060IG |
| 17 | Locknut (1) | 75309050IG |
| 18 | Drive Shaft | 469142590IG |
| 19 | Spoil Auger | 469142600IG |
| 20 | Grease Cylinder Assembly | 469142610IG |
| 21B | Boom for 36" Depth | 469142690IG |
| 22 | Shaft/Lockwasher/Bolt | 469142700IG |
| 23 | Spacers (2 required) Sealed | 469142710IG |
| 24 | Bearing | 469142720IG |
| 25 | Idler Roller | 469142730IG |
| 26 | Flat Washer | 469142740IG |
| 27 | Nylon Locking Plug | 469142750IG |
dqwdqwdqwdqw

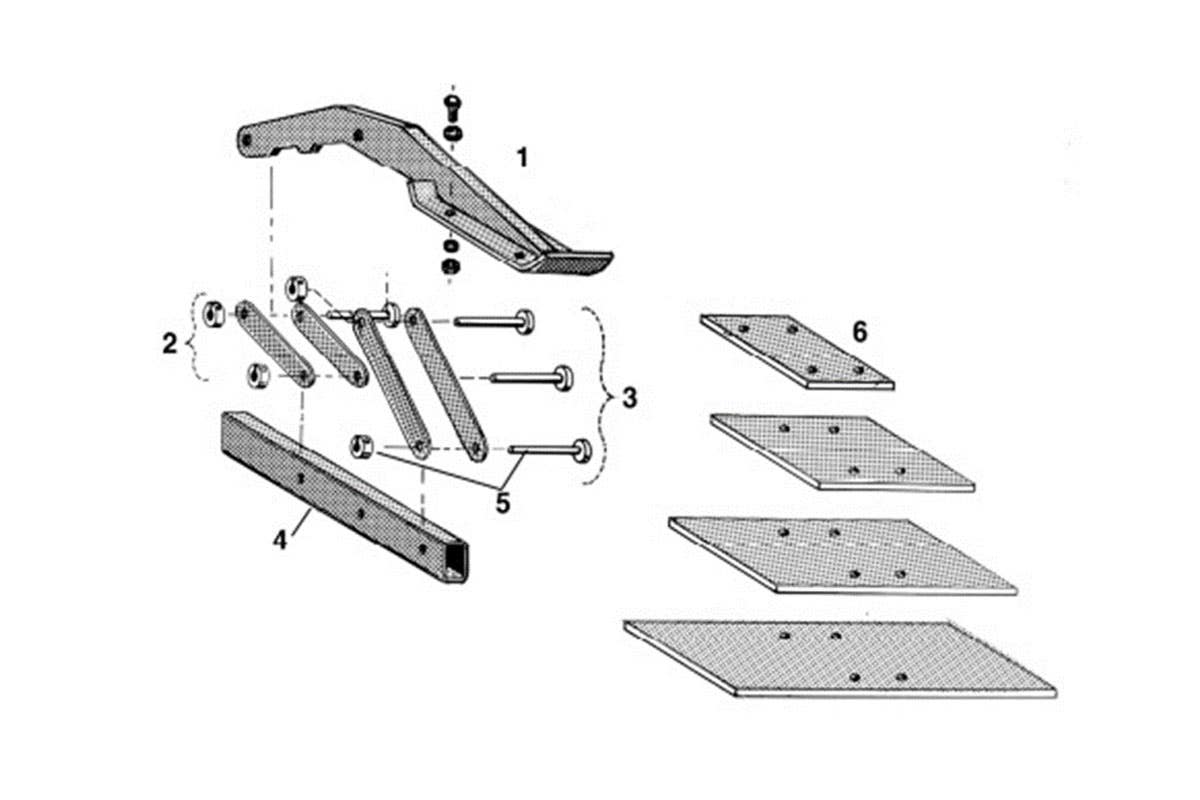

| Item # | Description | Part Number |
| 1 | Trench Cleaner Arm | 469142760IG |
| 2 | 9 inch trench cleaner linkage assembly | 469142770IG |
| 3 | 11 inch trench cleaner linkage assembly | 469142780IG |
| 4 | Trench cleaner bar for 24", 30", and 36" depths | 469142930IG |
| 5 | Pin and collar | 469142940IG |
| 6 | 6 inch dirt shoe | 469142960IG |
| 6 | 8 inch dirt shoe | 469142970IG |
