3-Point Tine Rake
Search by Machine
Close
Close
Replacing Rake Tines
Tools you'll need
3-1/4" Wrench
Jack Stands
3/14" Socket
Press-fit Grease Zerk Replacement
Tools you'll need
Hammer
Grease
Needle nose pliers
6mm socket
User Manuals:

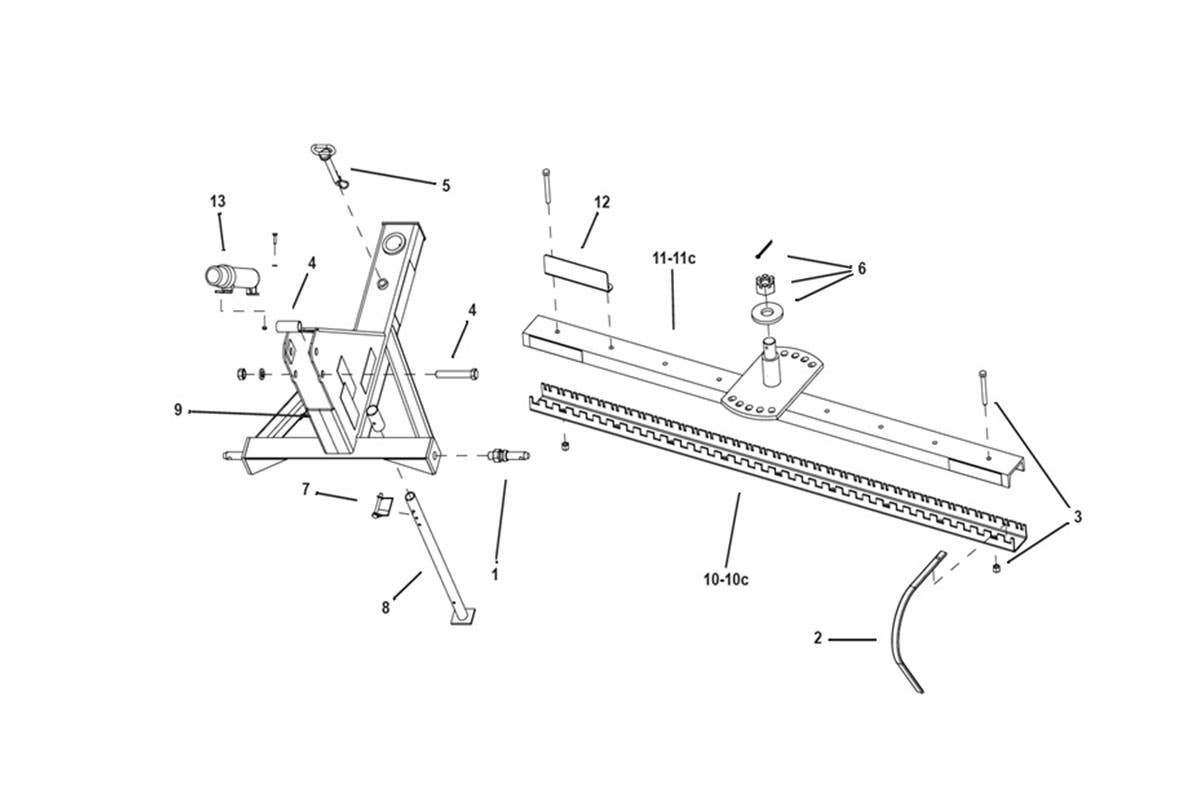

| Item # | Description | Part Number |
| 1 | Category 1 lift pin | 75026160IG |
| 2 | Rake tine | 75026980IG |
| 3 | Bolt and nut set (4 pk) for landscape rakes | 75352800IG |
| 4 | Top link bushing w/ hardware | 75026330IG |
| 5 | Hitch assembly hardware | 75352780IG |
| 6 | Pivot assembly hardware | 75352760IG |
| 7 | 5/16" d-ring ( lock pin) | 75027000IG |
| 8 | Standard duty stand 22.5" Tall | 75026320IG |
| 9 | Hitch assembly | 75352770IG |
| 10 | 5' standard duty landscape rake tine holder | 75352810IG |
| 10a | 6' standard duty landscape rake tine holder | 75302710IG |
| 10b | 7' standard duty landscape rake tine holder | 75352820IG |
| 11 | 5' standard duty landscape rake pivot assembly | 75352840IG |
| 11a | 6' standard duty landscape rake pivot assembly | 75352850IG |
| 11b | 7' standard duty landscape rake pivot assembly | 75352860IG |
| 13 | Std. Rear blade & landscape rake manual holder w/hardware | 75352790IG |
| Not Shown | Top link pin | 75027010IG |
| Not Shown | Tine Rake Wheel Kit | 75302930IG |
