3-Point Land Grader
User Manuals:
3-Point Land Grader Setup
dqwdqwdqwdqw

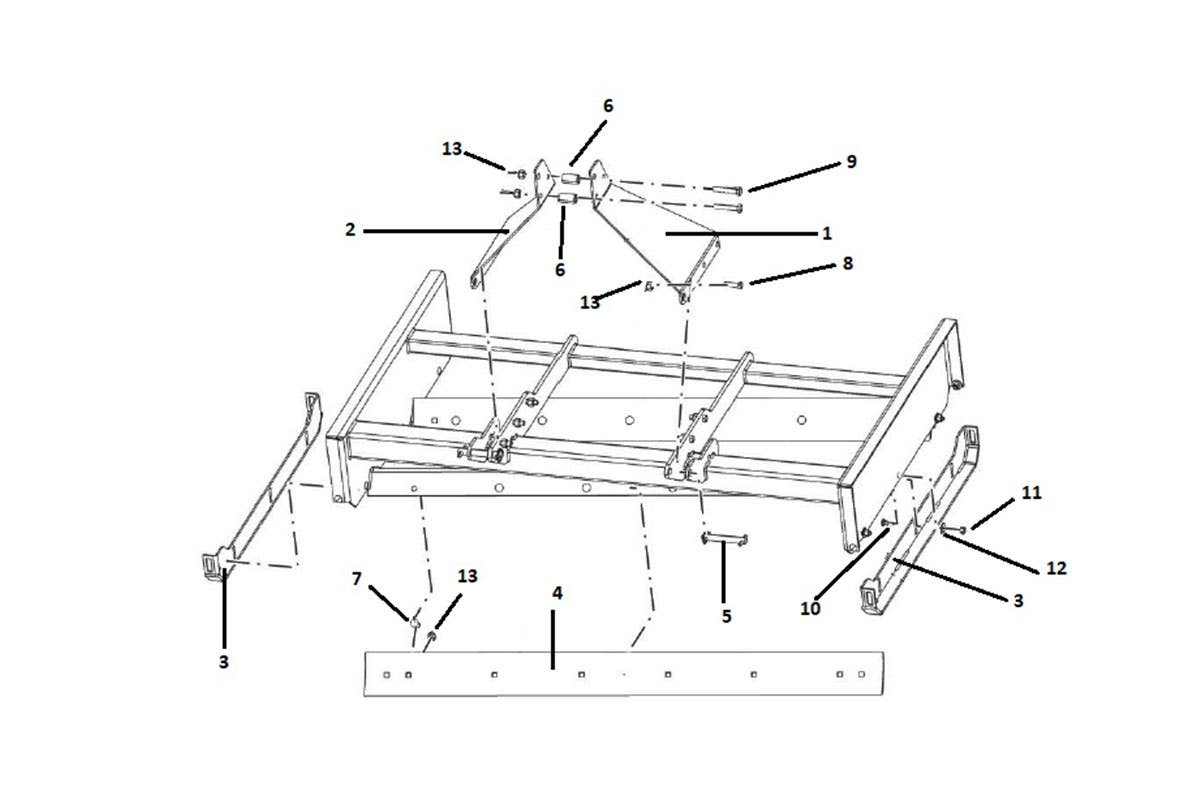

| Item # | Description | Part Number |
| 1 | LH A-arm | 75272280IG |
| 2 | RH A-arm | 75272220IG |
| 3 | Skid Shoe | 75272230IG |
| 4 | 60' Cutting Edge | 75026180IG |
| 4 | 72' Cutting Edge | 75026190IG |
| 5 | Cat 1 Hitch Pin w/ Lynch clip | 75272250IG |
| 6 | Spacer Bushing | 75272260IG |
| 7 | 5/8"-11x2" GR5 Plow Bolt | 75272270IG |
| 8 | 5/8"-11x2" Hex Bolt | Obtain Locally |
| 9 | 5/8"-11x3-1/2" Hex Bolt | Obtain Locally |
| 10 | 1/2"-13x1-1/2" Carriage Bolt | Obtain Locally |
| 11 | 1/2"-13 Nylon Lock Nut | Obtain Locally |
| 12 | 1/2" Flat Washer | Obtain Locally |
| 13 | 5/8"-11 Nylon Lock Nut | Obtain Locally |
